2-speed gearbox 3D-printmodel

$7.95 -40%
$4.77
Vergunning:
2-speed gearbox 3D-printmodel
$7.95 -40%
$ 4.77
Verwijder Bookmark Bookmark dit Item
  • Mogelijke formaten:
    Gratis formaatconversie
    3DS MAX: max 3.74 MB
    3DS MAX: max 2.87 MB
    IGES: iges 3.56 MB
    Agisoft Photoscan: ply 1.57 MB
    SolidWorks: sldprt 4.63 MB
    STEP: step 2.68 MB
    Stereolithography: stl 5.03 MB
  • Collectie:
    No
  • Afdruk Gereed:
    Yes
  • 3D-scan:
    No
  • Volwassen:
    No
  • PBR:
    No
  • Aantal keer bekeken:
    3512
  • Datum:
  • Item ID:
    457076
  • Rating:
Report dit item

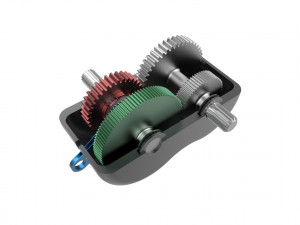

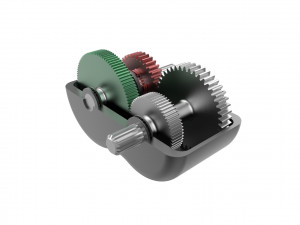

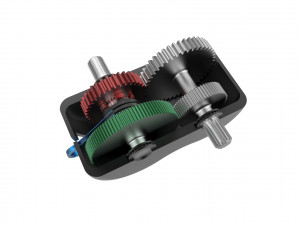

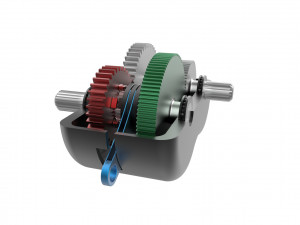

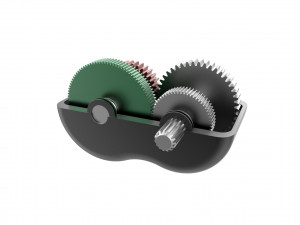

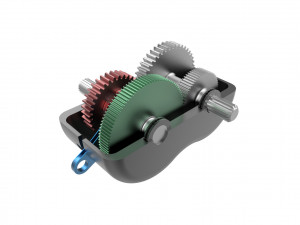

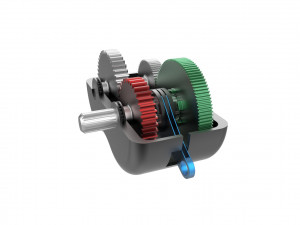

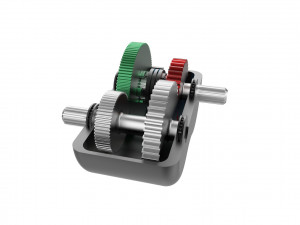

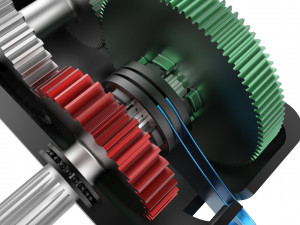

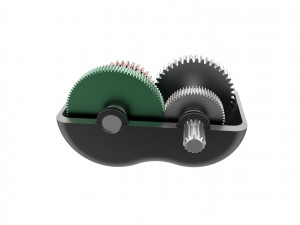

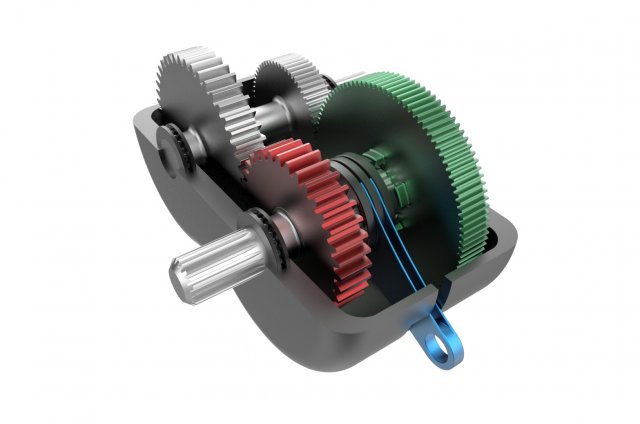

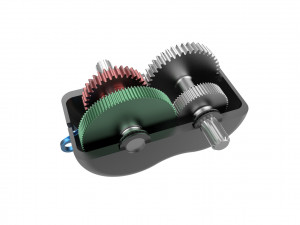

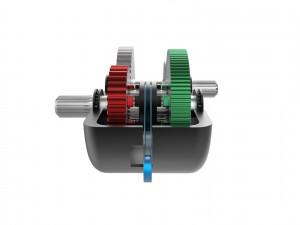

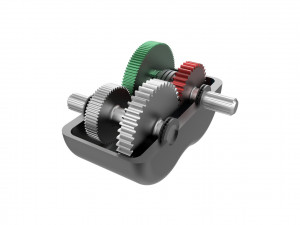

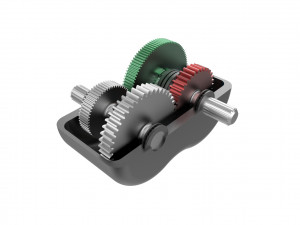

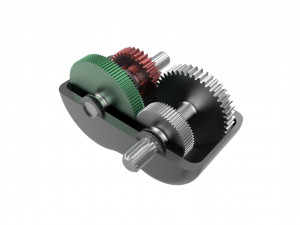

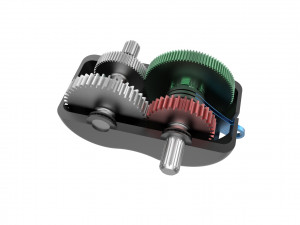

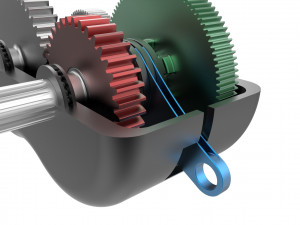

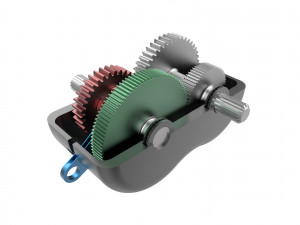

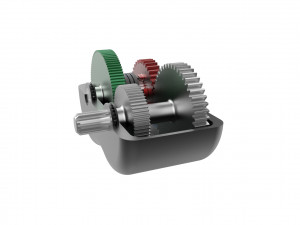

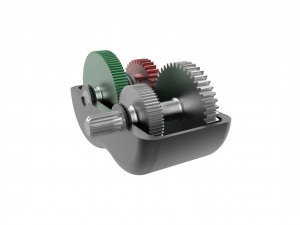

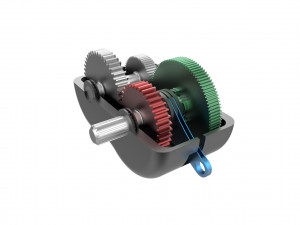

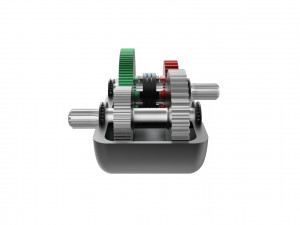

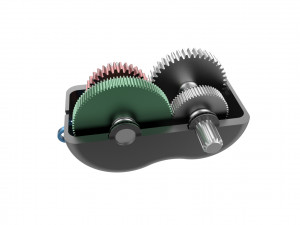

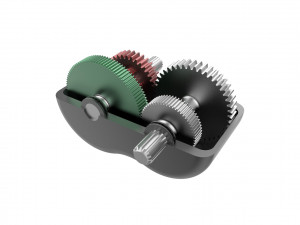

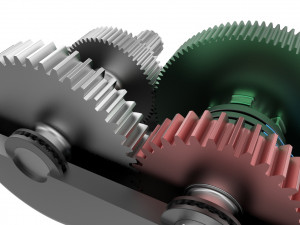

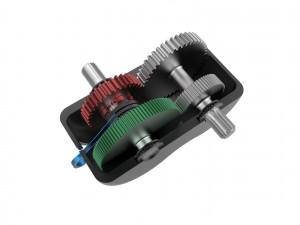

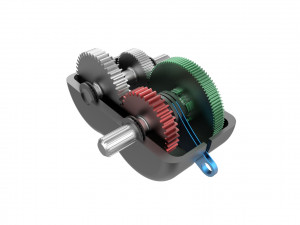

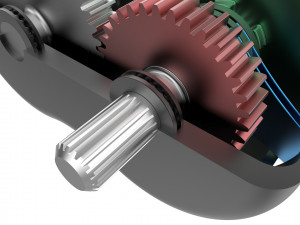

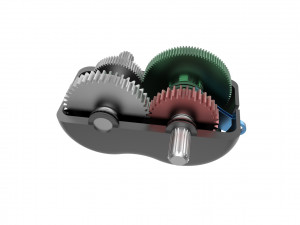

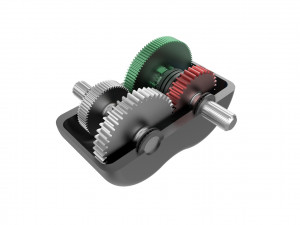

This is my gearbox whitch consists of a 2 sets of gears. Motion comes from the top shaft which has the gears casted on it. upper 2 gears are connected with the lower ones and are continiously transfering motion. The lower gears are mounted on bearings and then on the other shaft,,, (these gears are spinning freely when in neutral). in the middle of the two geras there is a clutch which is controled by a lever. if we mode the shaft on the one side, it connects with the gear and transfers the motion to the shaft and finally we get the output power... This gearbox acts as a reducer with the first combination (z1=60 m=1 z2=100 m=1) and as an icreaser with the second combination (z3=45 m=2 z4=35 m=2)
Meer formaten nodig?
Als u een ander formaat nodig heeft, open dan alstublieft een nieuwe Support Ticket en vraag om een ander formaat. Wij kunnen uw 3D modelen van vorm veranderen naar: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We converteren geen 3D-scènes en formaten zoals .step, .iges, .stp, .sldprt.!

Download 2-speed gearbox 3D-printmodel max max iges ply sldprt step stl Van AGDesign

aluminum lever solidworks gears bearing motion shaft reducer gearbox tooth transfer 2012 manual clutch transmission vehicle hobby diy mechanical parts
