bead triangle adhesive laminating machine 3D Model

rubber equipment, tire equipment, bead rubber laminating machine

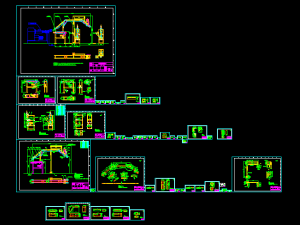

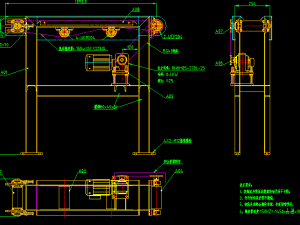

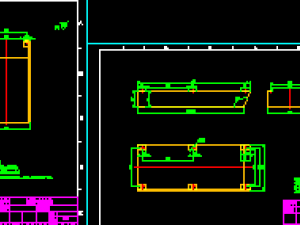

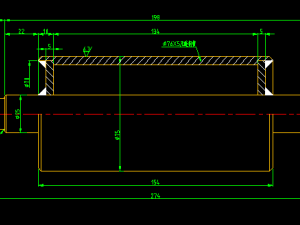

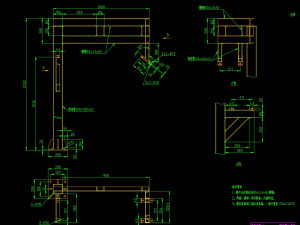

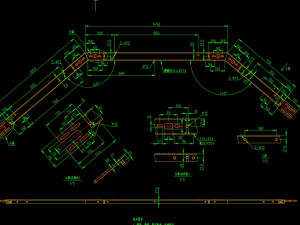

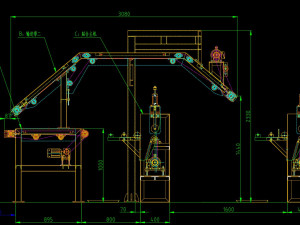

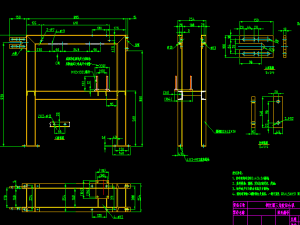

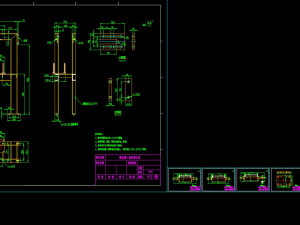

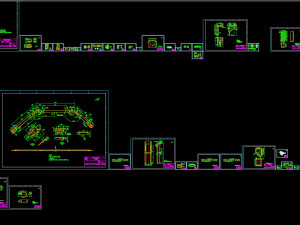

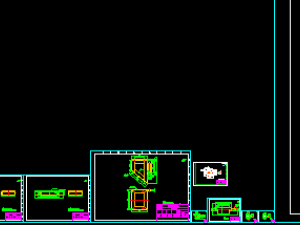

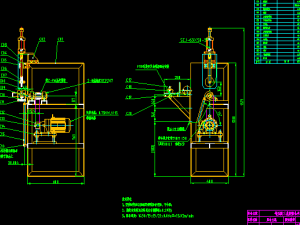

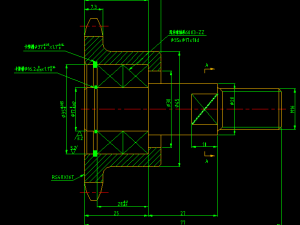

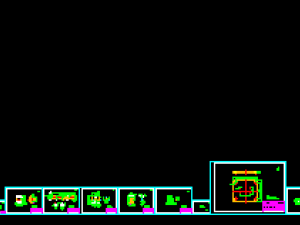

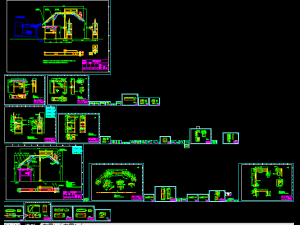

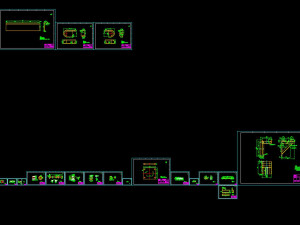

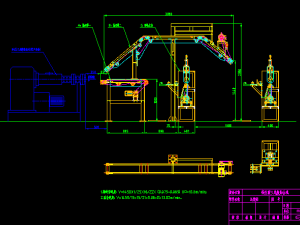

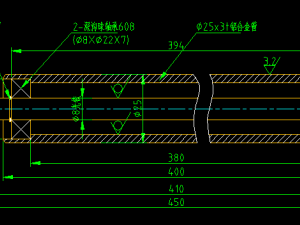

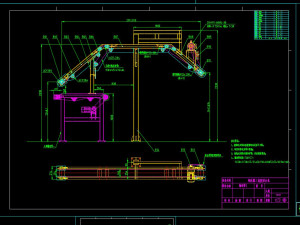

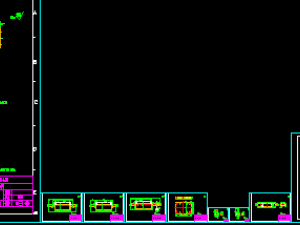

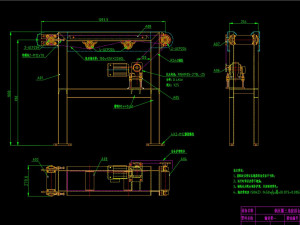

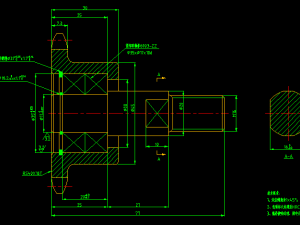

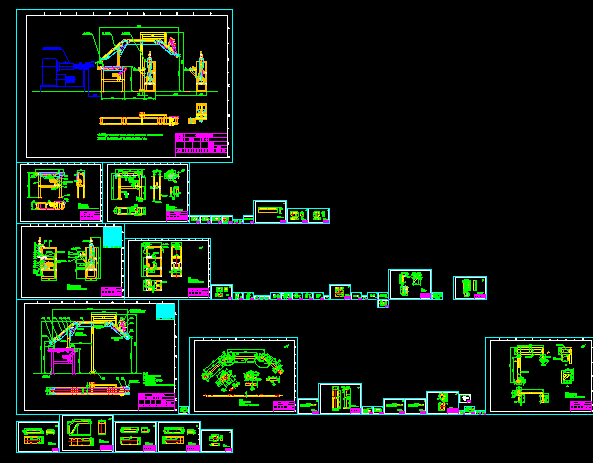

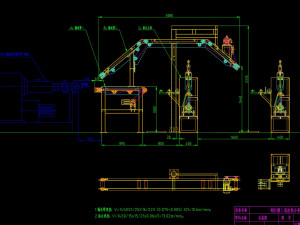

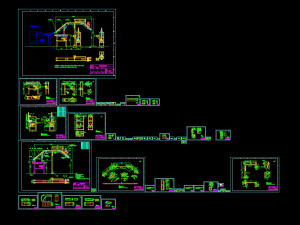

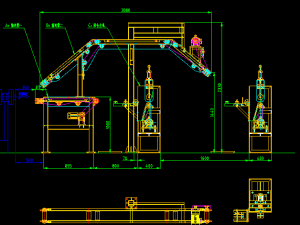

[rubber tire machinery]] bead rubber laminating machine, parts drawing + general assembly drawing + standard parts, standard drawing of a company can be downloaded directly for production! mature drawings, cabbage price! this kind of drawing is unable to buy, can imitate, but the design cost at least tens of thousands of yuan. welcome to download!

it is characterized in that: the output port of the feeding device is connected with the feeding port of the extruder; the outlet of the extruder is specially designed with a triangular rubber head with the shape required for extrusion; the rear end of the extruder is also provided with a rubber conveying device and the outlet of the extruder is connected with the inlet of the rubber conveying device; the rubber cutting device is arranged on the path of the rubber conveying device, and the rubber cutting device is a rubber material fixed length cutting device which can cut the formed rubber material into the required triangle rubber length and incision slope; the back end of the rubber conveying device is also provided with a coil which can wind and fit the cut triangular film onto the steel ring (3) the outlet of the rubber conveying device is connected with the inlet of the winding laminating device. Afdruk Gereed: Nee
