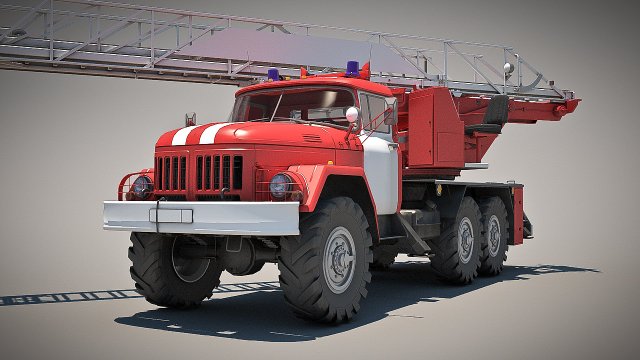

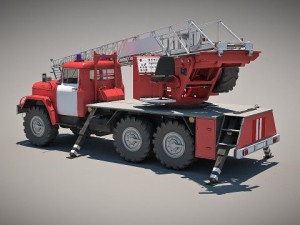

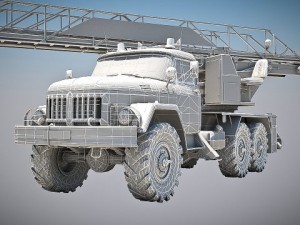

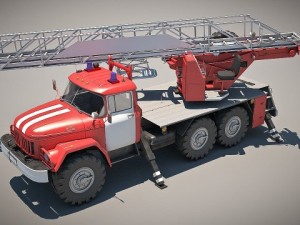

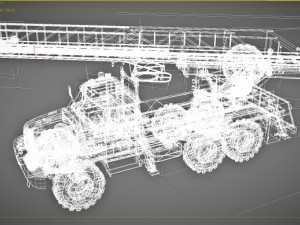

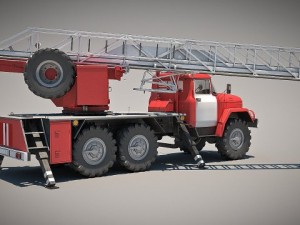

fire car
3D Model

http://www.youtube.com/watch?v=qdtyzyjg2ve

truck diesel engine .

originally modelled in 3dsmax 2011. detailed enough for close-up renders. the zip-file contains standard materials, textures and shaders.

features:

- all materials, textures and shaders are included.
- no cleaning up necessary, just drop your models into the scene and start rendering.
- no special plugin needed to open scene.
when you create a model used vray 2.0

technical characteristics
maximum working height (boom fully extended and raised to a maximum angle), m 30
maximum working load to the top of the stairs is not leaning at maximum radius not less than 160 kg
payload ladder when using it as a crane (boom fully extended ladders), not less than one ton
the maximum uniformly distributed load on the fully extended and not leaning against the ladder with a maximum radius of not less than 160 kg
the maximum uniformly distributed load on the fully extended and with the top leaning at maximum radius not less than 560 kg
minimum boom angle at which it can rotate 360 ??degrees, no more hail. 10
boom swing angle (left and right) in a circular rotation, no less degree. 360
the working range of angles of a staircase from the minus degrees. 75
working radius top of the stairs from the rotation axis swivel base with a maximum working load on the top 16 m
minimum boom at its maximum length, half the maximum width of the support contour plus 5, m 1
the maximum width of the support contour, not more than 3.5
the installation, the outriggers, no more than 50
overall dimensions
length, 10 500 mm
width, 2500 mm
height, mm 3200
model chassis cupid 531 344
wheel 6x6
diesel engine mmz, d-245.30e3
engine power, not less kw (hp) 111.4 (150)
maximum speed, km / h 80

gross weight not more than 10 200 kg
gross weight distribution:
- front axle, 3070 kg
- on the rear axle, 7130 kg
overall outer turning radius, m 11.6
number of seats in the ****pit fighting crew (including the driver), pers. 3 Afdruk Gereed: Nee
