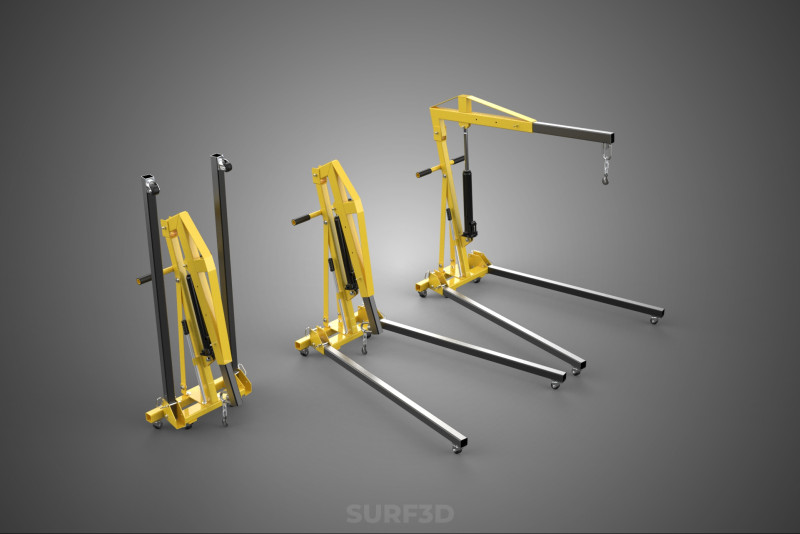

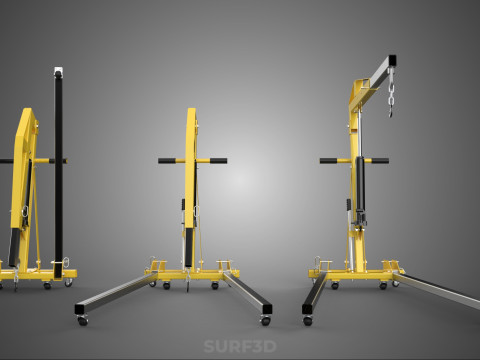

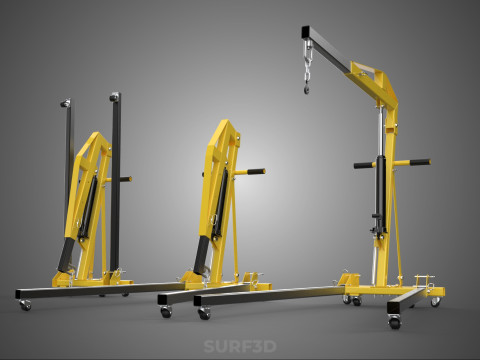

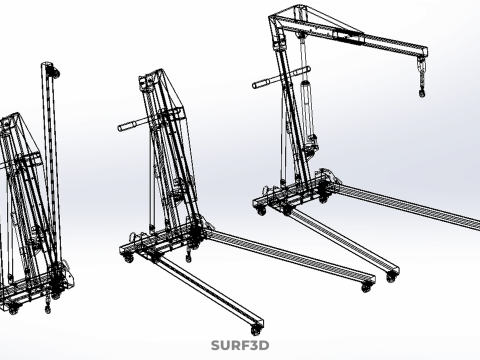

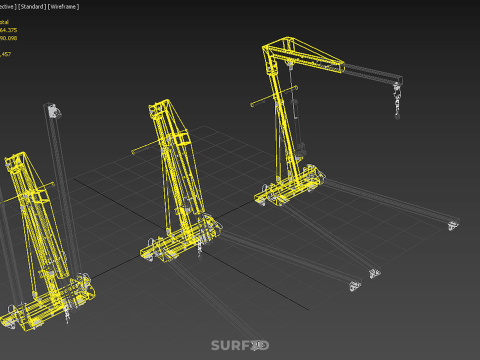

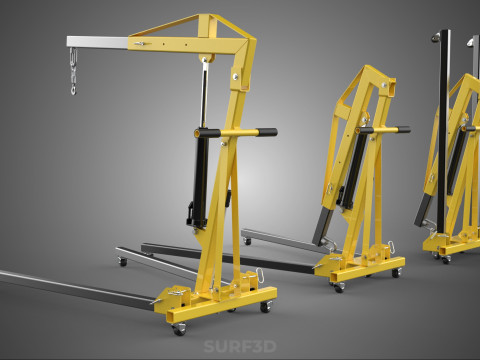

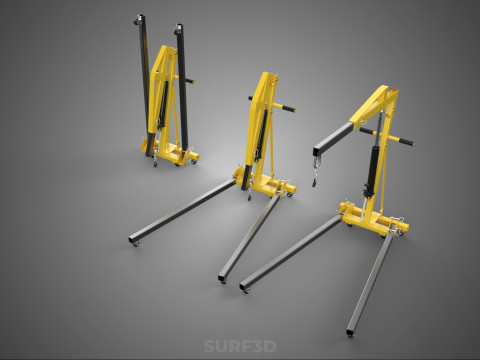

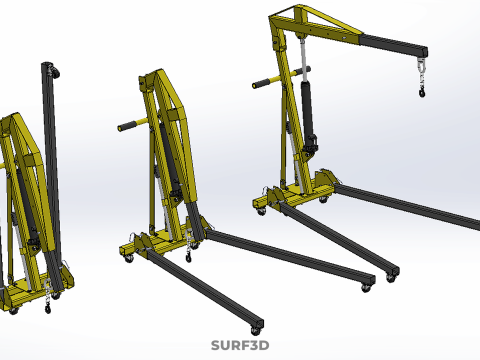

FOLDABLE COLLAPSIBLE FOLDING HYDRAULIC ENGINE CRANE HOIST LIFTER 3D Model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
•    - FBX (.fbx) – Standard format for most 3D software and pipelines
•    - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
•    - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
•    - STEP (.step, .stp) – CAD format using NURBS surfaces
•    - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
•    - SAT (.sat) – ACIS solid model format (NURBS)
•    - DAE (.dae) – Collada format for 3D applications and animations
•    - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
•    - 3DS (.3ds) – Legacy format with broad software support
•    - 3ds Max (.max) – Provided for 3ds Max users
•    - Blender (.blend) – Provided for Blender users
•    - SketchUp (.skp) – Compatible with all SketchUp versions
•    - AutoCAD (.dwg) – Suitable for technical and architectural workflows
•    - Rhino (.3dm) – Provided for Rhino users

Model Info
•    - All files are checked and tested for integrity and correct content

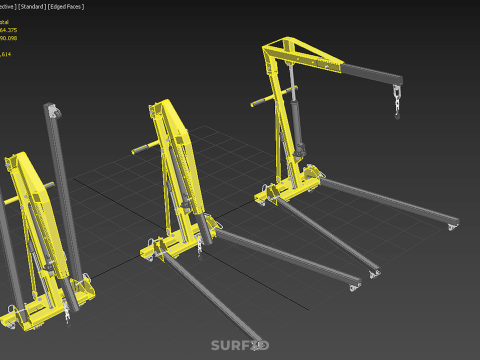

•    - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
•    •    - Scene setup and mesh structure may vary depending on model complexity
•    - Rendered using Luxion KeyShot
•    - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**FOLDABLE/COLLAPSIBLE/FOLDING HYDRAULIC ENGINE LIFTER CRANE HOIST**

A foldable/collapsible/folding hydraulic engine lifter crane hoist is a specialized piece of lifting equipment designed primarily for the removal, installation, and maneuvering of vehicle engines and heavy powertrain components within automotive repair workshops, garages, and industrial settings. It is a specific type of floor crane characterized by its integrated hydraulic lifting mechanism and its ability to be significantly reduced in physical volume for storage or transport.

**Description and Mechanism:**

The apparatus typically consists of a robust steel frame that serves as a stable base, often equipped with heavy-duty casters or wheels to facilitate mobility while supporting a load. Extending upwards from the frame is a vertical or angled mast, which supports an articulated or telescoping boom (also known as a lifting arm or jib). This boom terminates in a point from which a hook, often attached via a chain or cable, is suspended to connect to the load.

The core lifting mechanism is a hydraulic cylinder, horizontally or vertically mounted, connected between the mast and the boom. A manually operated or sometimes powered hydraulic pump, actuated by a lever or handle, forces hydraulic fluid into the cylinder. The increased fluid pressure extends the cylinder rod, causing the boom to pivot upwards around its base or extend outwards, thereby lifting the attached load. A release valve allows for the controlled lowering of the boom by permitting the hydraulic fluid to return to the reservoir.

Many models feature an adjustable boom length, allowing for variation in lifting height and reach, though the maximum lifting capacity typically decreases as the boom is extended further.

**Folding/Collapsible Feature:**

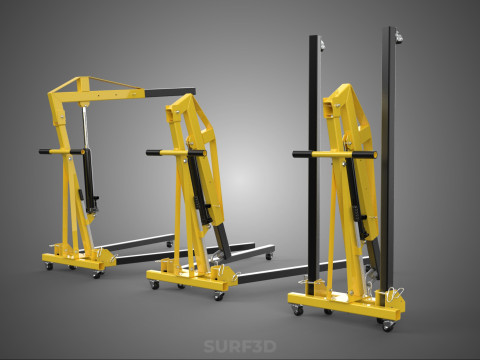

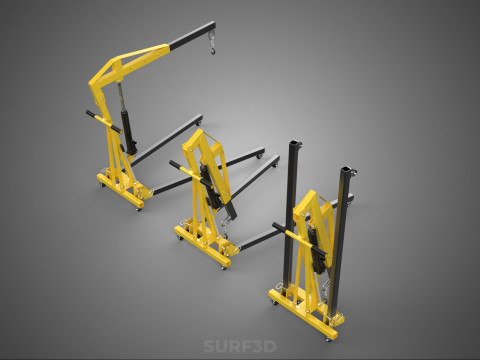

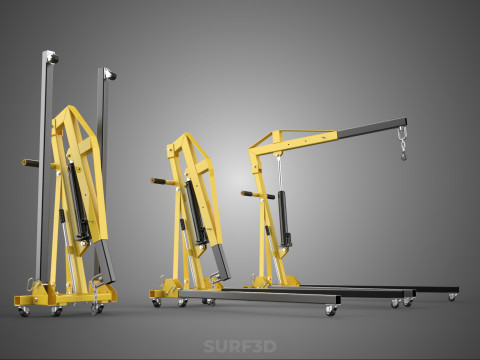

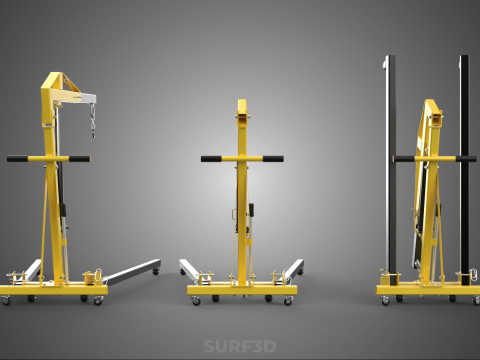

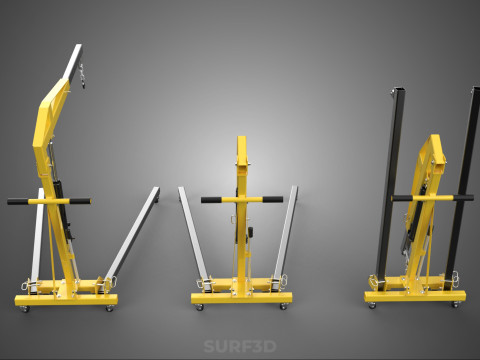

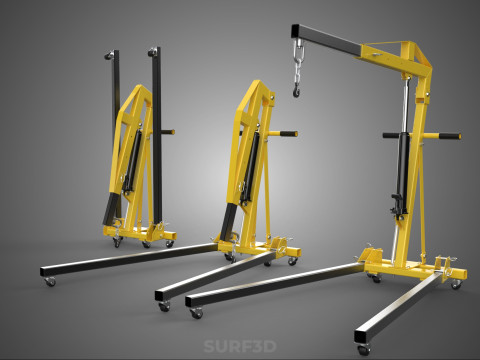

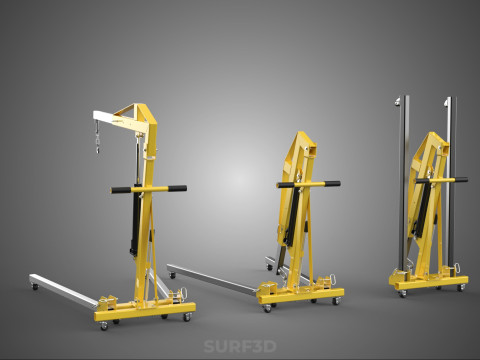

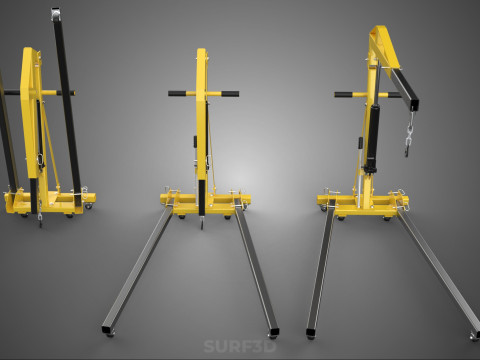

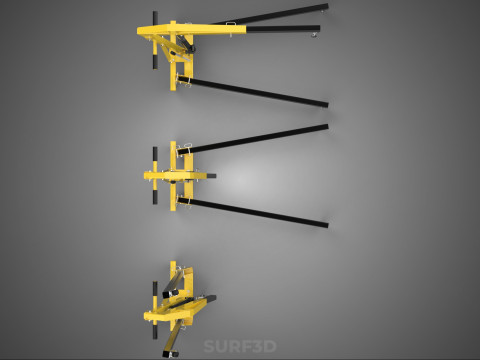

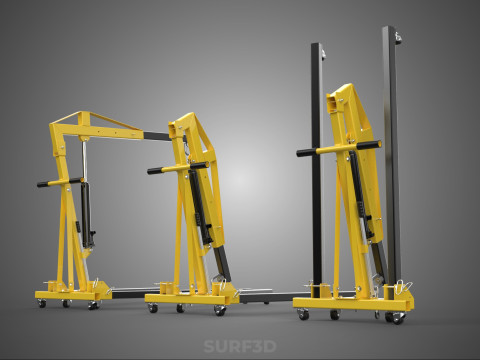

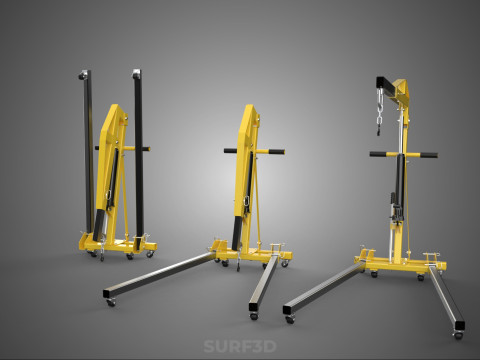

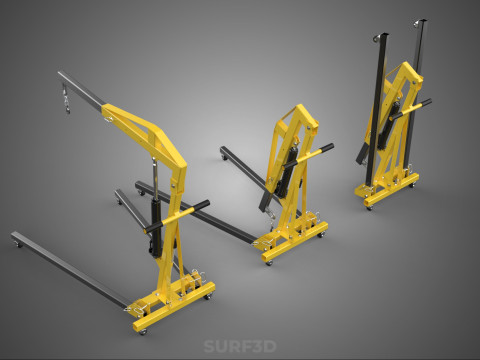

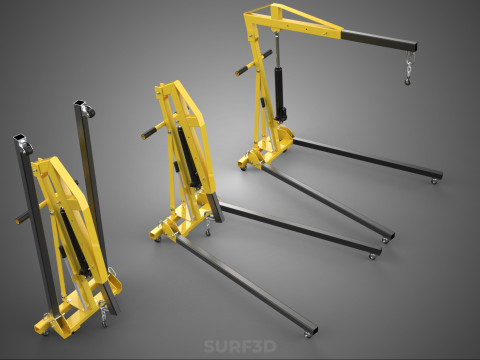

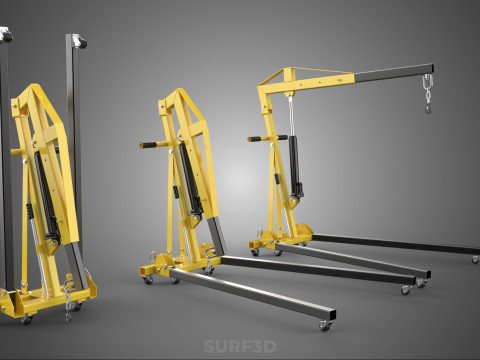

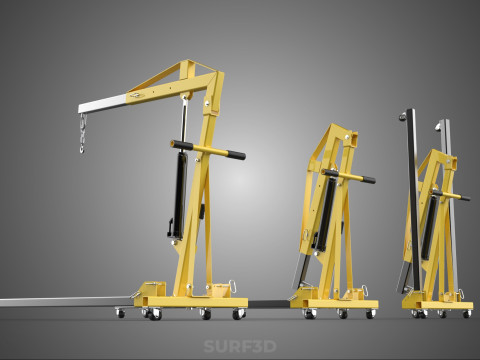

The distinguishing characteristic of this type of engine crane is its ability to fold or collapse. This is achieved through articulated joints in the frame's legs and sometimes the mast or boom structure. When not in use, pins or latches are released, allowing the support legs to pivot upwards or inwards and the boom to fold down or detach partly. This significantly reduces the equipment's footprint, enabling it to be stored more compactly against a wall or in a corner, a crucial advantage in space-constrained environments like small garages or workshops. The folding mechanism requires no tools on most designs and can be executed relatively quickly.

**Operation:**

Operation involves positioning the crane with the load directly beneath the boom hook. The load (e.g., an engine) is securely attached using appropriate lifting chains, slings, or brackets. The hydraulic pump handle is then actuated repeatedly to raise the boom and lift the load clear. To maneuver the load, the entire crane is rolled on its wheels. Lowering is performed by slowly opening the hydraulic release valve, allowing the boom and load to descend in a controlled manner. Proper operation mandates adherence to the crane's specified lifting capacity and ensuring the base is stable and on a level surface.

**Advantages:**

*   **Space Efficiency:** The primary advantage is the ability to fold the unit for compact storage, saving valuable floor space when not in use.
*   **Portability (for Storage):** While heavy, the reduced size makes storage and transport between locations easier compared to a rigid, non-folding crane.
*   **Cost-Effectiveness:** Generally more affordable than permanently installed lifting systems like overhead cranes or gantry cranes.
*   **Mobility (When in Use):** Wheels allow for easy movement of the crane and suspended load around the workspace.

**Disadvantages:**

*   **Floor Dependence:** Requires a flat, solid floor surface for safe operation.
*   **Footprint (When in Use):** Even when folded, it has a significant weight. When deployed, the wide stance of the legs requires substantial floor space around the vehicle.
*   **Capacity Limits:** Maximum lifting capacities are generally lower than larger, fixed lifting systems.
*   **Manual Effort:** Manual pumping requires physical effort, especially with heavier loads.

**Applications:**

The foldable hydraulic engine lifter crane hoist is an indispensable tool in:

*   Automotive repair shops
*   Home garages
*   Vocational training centers
*   Light industrial maintenance settings
*   Vehicle restoration projects

It is specifically designed for tasks such as engine swaps, transmission removal/installation, and handling other heavy vehicle components.

**Safety Considerations:**

Safe operation is paramount and includes:

*   Never exceeding the rated lifting capacity, particularly with the boom extended.
*   Ensuring the load is balanced and securely attached.
*   Operating on a level, stable floor.
*   Keeping personnel clear of the load's path and potential drop zones.
*   Regularly inspecting the frame, boom, hydraulic system, and lifting hardware for damage or wear.
