mobile phone utmc automatic processing line 3D Model

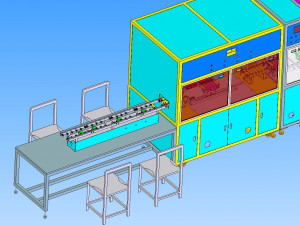

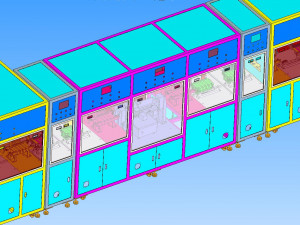

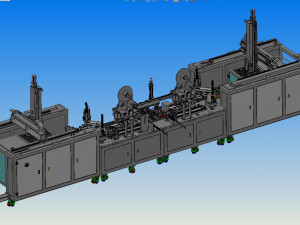

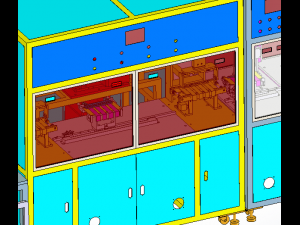

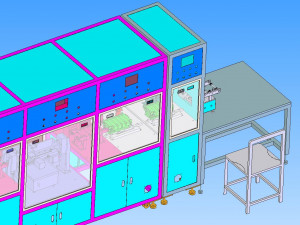

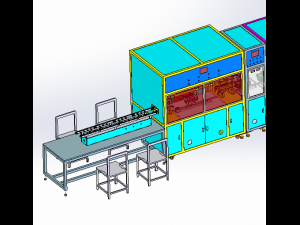

mobile phone processing production line equipment drawing, this is a fully automatic unmanned production line, the total length of the line is 16 meters long, the line structure and design style are all designed according to the japanese automatic production line, each station and each machine of the line body are individual units, the total line is a line assembled by individual unit rack structure, but each unit or in other words when each machine has a fault, it can be moved out for maintenance at any time, which will not affect the production of the whole line. the whole line is 16 meters long and is controlled by each structure and each separate circuit. the circuit transmits signals to each other by means of communication. from the structure of the line, we can see that there are many handling structures and racks designed individually, starting from the front section of the product to the back after the end processing is completed, all the intermediate processing links do not need manual operation. the total processing process and station of the line body are mainly as follows: conveying and feeding position, detection in place, automatic material taking and discharging handling manipulator, laser cutting forming position, stamping and cutting, automatic flux spraying, 180 degree rotating automatic tin bonding station, conveyor belt 90 degree conversion position, glue dispensing position, ccd phase machine vision detection position, automatic conveying position, conveying manipulator, discharging conveyor belt. each station can change its position and change its structure at any time to achieve the desired effect. some customers have different requirements, but the processing station is also different, so we need to redesign or change the structure. after having this line, we can change it into another automatic production line or the automatic assembly line you want with only a small change why do you say that? because no matter what kind of production line is, the only thing that can remain unchanged is the structure of the line body and the handling manipulator. usually, some processing stations are different, some need to screw, glue, label or other, so this line is very good. i hope you can download the drawing if you need it. Afdruk Gereed: Nee
